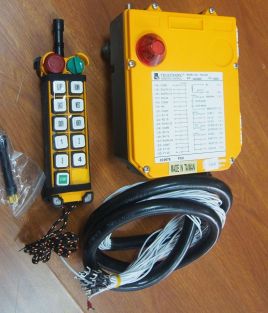

F24-10D crane radio control systems



10 single/double step operation pushbuttons +EMERGENCY STOP +SPARE KEY+SPARE



23 commands(F24-10D)



With battery voltage warning device ,the power is cut off during low power



Safety key switch to prevent from unauthorized user



Dourable nylon –fiber housing for extra shock resistance



Up/down ,east /west,north /south can be set as to mutual inhibition or not



Power key can be set to start ,acceleration,toggles switch ,general or other functions through computer



Spare NO.1and NO.2 keys can be set to general ,interlocking ,toggle switch,on/off or other functions through computer



Control distance is up to 100 meters



Safety code: 32bits (4.3billion group)



Temperature range: -40 ℃ ~ 85 ℃



Enclosure protection class: IP 65



Transmitter power :3VDC (2AA batteries last up to 4month)



Receiver Power Supply: AC 380V/220V/110V AC, or DC 12V/24V/36V/48V



Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays, 5 amp fuse).



Receiver &transmitter frequency :UHF425-446M



Transmitter  power :50HZ



Band width:315-446MHZ



Standard configuration:



(1)Transmitter 1 (with strap)



(2)Receiver 1



(3)Receiver comes with 1 m connection cable



(4)Operation and maintenance manual 1



Application: single hook, single-speed electric hoist or hoist type4 contacts about traffic and industrial control with a remote control.
