available AWG#6, #8-10

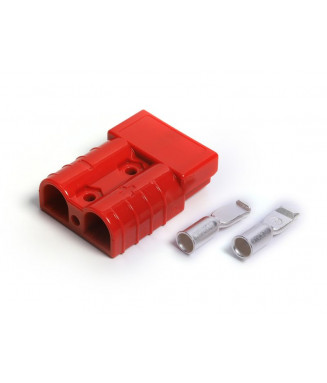

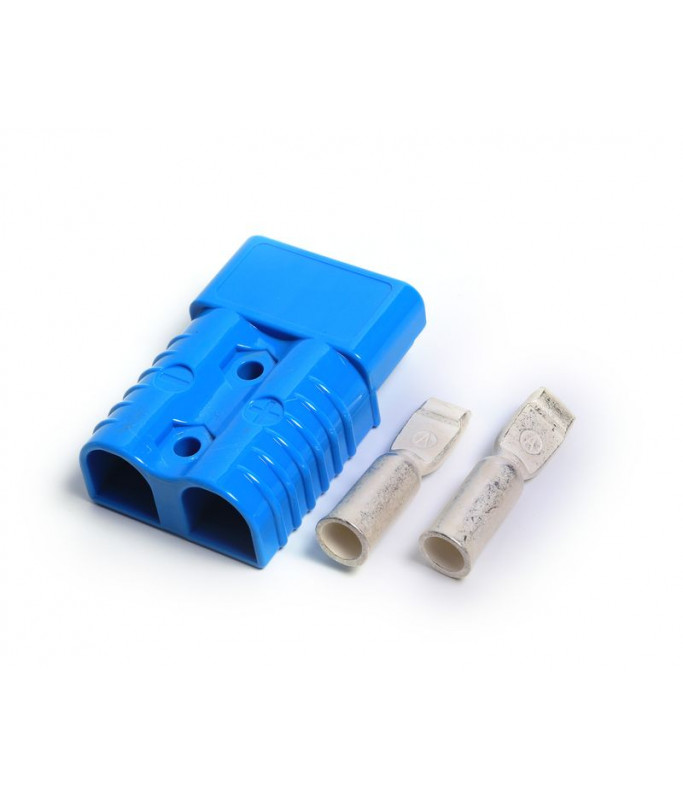

SB50A anderson connector

SB50applied to large current open circuit, such as high current input. Output, product charge or electrical connector.

SB battery connectors include 2 interlock plugs,4terminals,made with lightweight and durablepolycarbonate shell, silver / tin plating of copper terminals.The max curren is 175amp,the max voltage is 600V,the size of plugs may be is 55X79.The colour include red and grey.we have the UL,CE credentials.

Low Resistance Silver or Tin Plated Copper Contacts
Allows UL rated currents up to 120 amps
• UL Rated for Hot Plugging up to 50 Amps
Great for battery or other applications where the ability to
interrupt circuits is required
• Wire, PCB, and Busbar Contacts
Allows one connection system to meet multiple needs

SB®50 Standard Housings
The smallest SB® housings work with wire contacts up to
6 AWG [10 mm²] as well as PCB, and busbar contacts.
Genderless design mates with itself. Mechanical keys are
c olor coded.

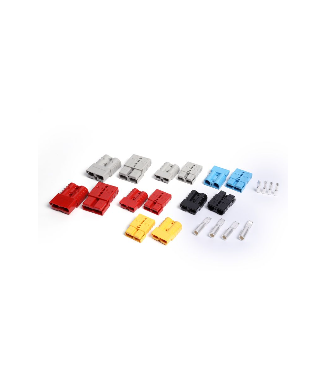

Yellow 992G5-BK 992G5
Orange 992G7-BK 992G7
Red 992G1-BK 992G1
Gray 992-BK 992
Blue 992G4-BK 992G4
Green 992G6-BK 992G6
Black 992G2-BK 992G2
NOTE: SB®50 Black and Gray housings have

SB®50 Chemical Resistant Housings
Same features as the Standard SB®50 but molded in a
chemical resistant PBT/ PC blend. Suitable for use to -40°C.
Description ---- Part Numbers ----
Minimum Quantity .... 500 100 ...
Red P992G1-BK P992G1
Gray P992-BK P992
Black P992G2-BK P992G2
NOTE: SB®50 Black and Gray housings have the
same keying features and can be intermated.

SB®50 Silver Plated Busbar Contacts
Use 2 busbar contacts per housing to provide a quick disconnect input or output
busbar connection. Busbar contacts are for mating with wire contacts only. Part number
75BBS includes lock nuts. Locknuts must be ordered separately for B01915P1.
