Voltage: 600V

Pole number: 1

Wire range: 20AWG-1/0AWG

1 set of single pole connectors is:  including 1 housing and 1 contact

Housing material: polycarbonate

Contact material: silver-plated copper

Spring material: stainless steel

Colors: red, black, blue, green, white and yellow
Yellow: 12V Orange: 18V Red: 24V Gray: 36V Blue: 48V Green: 72V Black: 80V

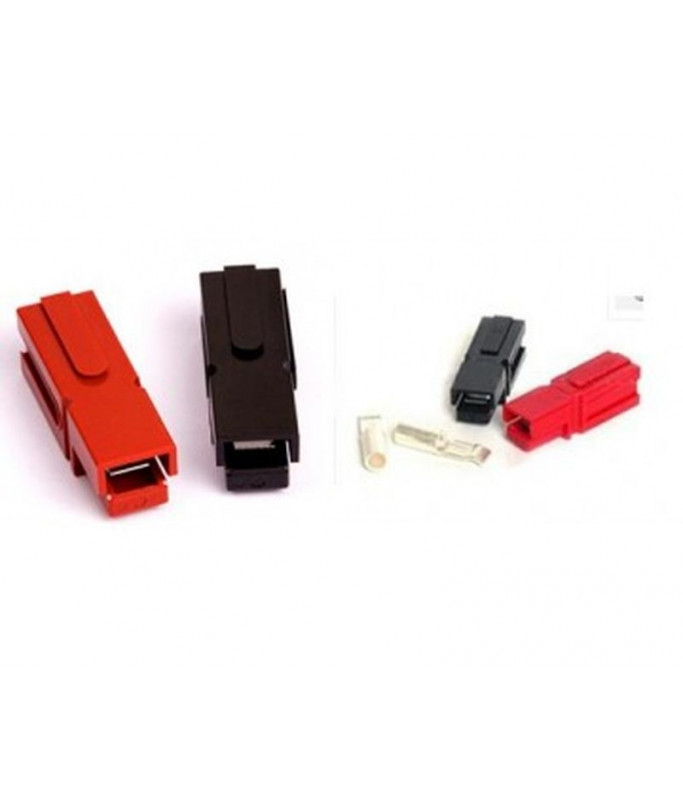

PP120 series Powerpole® housings are designed
to accommodate up to 1/0 (50 mm²) wires and handle
high currents up to 240 amps. Reducing bushings allow
PP120 to accept down to #8 (10 mm²) wires. Multiple
colors of stackable housings combine with APP®’s low
resistance flat wiping technology to offer powerful
connection capability.
• Large Wire Range Accommodates up to 1/0 (50mm²) Wire
Reducing bushings allow as small as #8 (10 mm²) wire to be used
• Low Resistance Silver Plated Copper Contacts
Allows currents up to 240 amps
• UL Rated for Hot Plugging up to 60 Amps
Great for battery or other applications where the ability to
interrupt circuits is required

PP120 Housings
The second to largest Powerpole® housing can be used with
wire contacts for up to 1/0 AWG [50mm²] or busbar contacts.
Description -------- Part Numbers --------
Minimum Quantity ... 500 50 .......
Red 1321G3-BK 1321G3
Green 1321G4-BK 1321G4
Black 1321G1-BK 1321G1
White 1321G2-BK 1321G2
Blue 1321-BK 1321
Gray 1321G8-BK 1321G8
PP120 Silver Plated Wire Contacts
Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles.
New contacts for #1 to 1/0 AWG (35 to 50 mm²) offer extended capability in the same housings. See
reducing bushings in accessory section for smaller wires.
Mating - A - - B -
AWG mm² Force -------- Loose Piece Part Numbers -------- inches mm inches mm
Minimum Quantity ........ 600 500 50 ....................................................
1/0 53.5 Low 1323G2-BK - 1323G2 0.52 13.21 0.44 11.18
1 42.4 Low 1323G1-BK - 1323G1 0.47 11.94 0.39 9.91
2 33.6 High - 1319-BK 1319 0.44 11.18 0.34 8.64
4 21.1 High - 1319G4-BK 1319G4 0.44 11.18 0.29 7.37
6 13.3 High - 1319G6-BK 1319G6 0.44 11.18 0.22 5.59

PP120 SPECIFICATIONS |
Electrical
Current Rating Amperes¹ UL 1977 CSA
Singlepole UL 1977 (1/0 AWG) 240 155
2x2 Block UL 1977 (1/0 AWG) 200 110
Voltage Rating AC/DC
UL 1977 600
Dielectric Withstanding Voltage
Volts AC 2,200
Avg. Mated Contact Resistance Milliohms¹
5 1/2” of #2 AWG wire 0.136
UL Hot Plug Current Rating Amperes
250 cycles at 120V DC 60A
Materials
Housing
Plastic Resin Polycarbonate
Contact Retention Spring Stainless Steel
Housing Flammability Rating
UL94 V-0
Contact
Base Copper Alloy
Plating Silver
Contact Termination Methods
Crimp³ Wire Contacts
Hand Solder Wire Contacts
¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP® recommended tooling, and
a 25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below
a 30°C temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Use APP® recommended tooling only. Alternate tools may adversely affect the performance of our connectors
along with UL and CSA recognition.
Mechanical
Wire Size Range AWG mm²
Wire Contacts with Bushings 10 to 1/0 5.3 to 53.5
Max. Wire Insulation Diameter in. mm
0.600 15.240
Operating Temperature² °F °C
-4° to 221° -20° to 105°
Mating Cycles No Load by Plating Silver (Ag)
Wire Contacts 10,000
Avg. Mating / Unmating Force Lbf. N
8 36
Min. Contact / Spring Retention Force Lbf. N
60 267

Protection
Touch Safety with Wire Contacts
IEC 60529 IP10
